Sportiv BSA-S

Designed as type SA-3, but

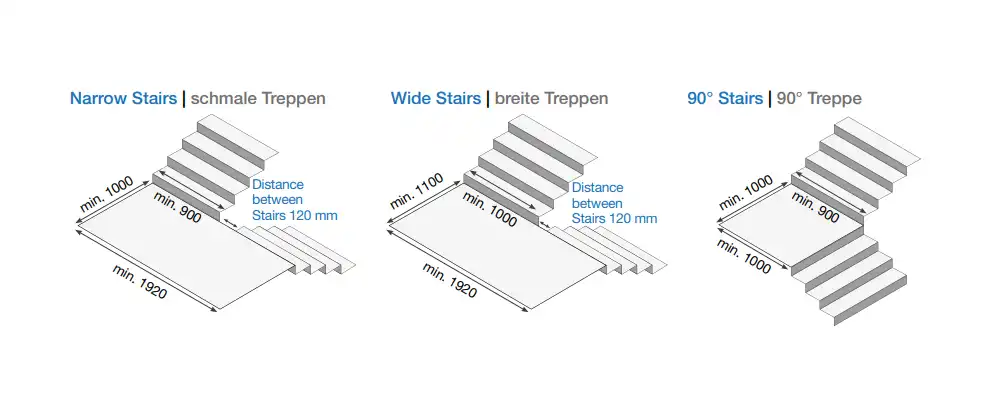

Carries 150 kg capacity up to 30 levels Very less space needed to turn on small stair landings of 970 x 970 mm Length 80 mm shorter than SA-3

Manufacturer:

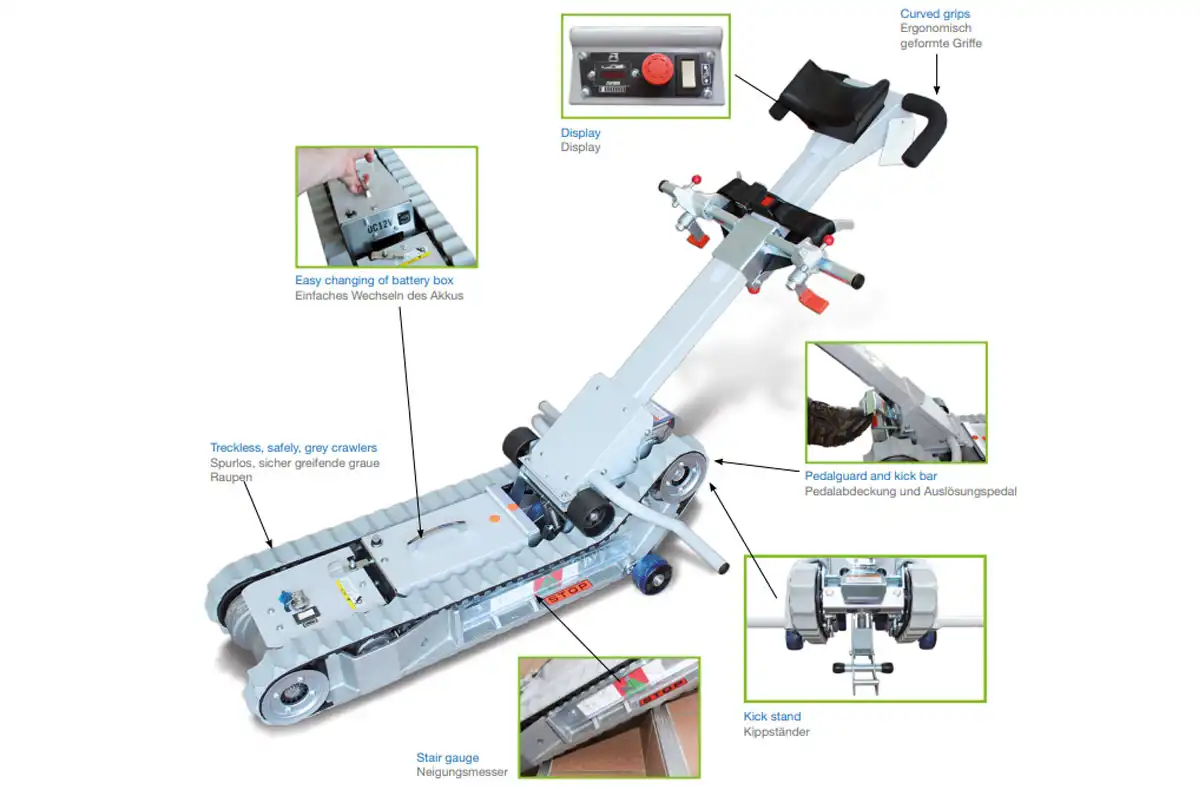

Description

In case the width of stair is 900 mm, it may need a cut of the steering, i.e. to turn gradually with pushing machine forward and backward.

Start position

Place foot stand

Move the wheelchair over stair climber

Attach chair climber to the wheel chair

Fasten seatbelt

Put down the kickstand, tip passenger together with wheelchair until it clicks and move him to stairway

Specification		SA-S
capacity	kg	160 (135 with shoe attachment
measurements	mm	1486 x 690 (with shoe attachment 780) x 918
weight	kg	65
power	Κινητήρας DC-E	210W / 30 min. rated output
battery		valve regulated lead-acid battery 2 x 6 V / 20 Ah / 20HR
speed	upstairs	6,5 m / min
	downstairs	10 m / min
stair angle		35°
brakes		Power off activated electromagnetic brake
battery load controll		inkl.

autom. charger	12 V / 2,5 A
