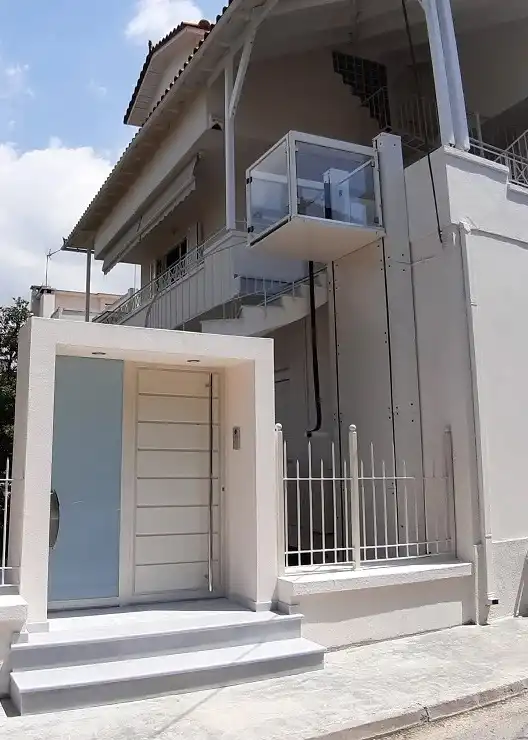

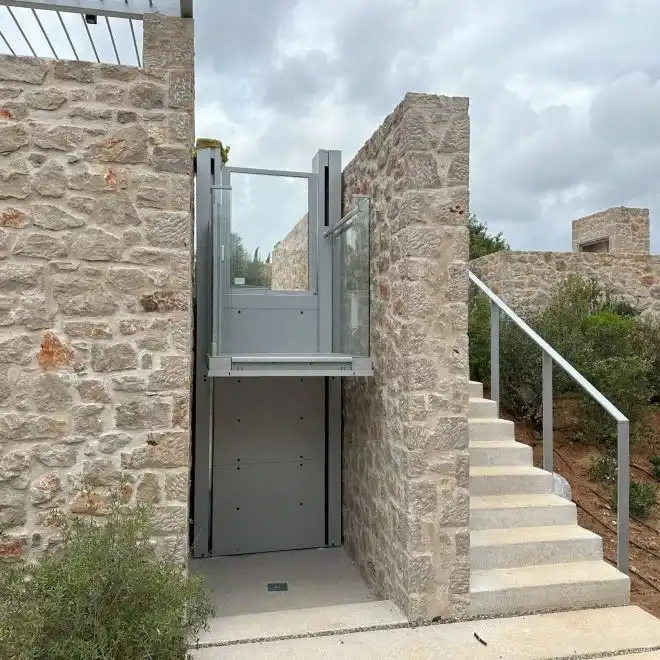

The FACELIFT vertical lift is installed both externally and internally in buildings without provision for a lift. The lift is mechanical and the lifting mechanism or column is supported directly on the building on the side where we want to have an entrance. The lifting is done with a motor (electromotor) which is mounted inside the column as well as the electrical panel of the lift and is equipped with a UPS release which ensures the release in case of power failure.

It is easily and quickly installed using a crane without requiring major interventions in buildings.

The lift is certified by an independent certification body and carries a type examination.

• Material: All metallic claddings are made of galvanized sheet metal
• Paint: Electrostatic
• Doors: Opening door to the outside or double bar which lifts upwards
• Fireplaces: Triplex 5+5 transparent
• Lighting: Led strip
• Flooring: Outdoor PVC
• Control panel: Control column with concealed lighting and control and safety knobs.
• Safety devices: Descent sensor for stopping the movement in case of obstacle detection, EMERGENCY STOP knob.

Package equipment

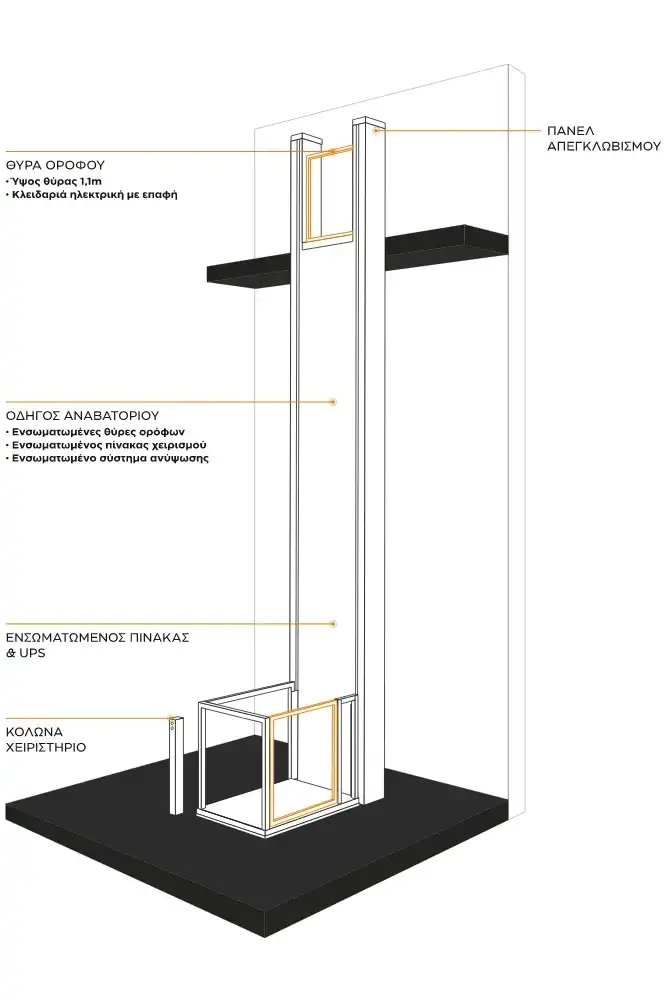

• Compact FACELIFT mechanism with direct wall mounting brackets with all the lifting mechanism and control panel integrated.
• Open platform with 1.1m parapet, maximum dimensions up to 1.0 x 1.3 m with an opening.
• One floor door measuring 0.8 x 1.1 m integrated in the guide.

Additional equipment

• Ground floor manhole door.
• Platform telephone.
• Metal ground floor manhole frame.

Advantages

• The mechanical equipment is completely covered with clothing and the panel is integrated into the support guide.
• It is supported directly on the building and access is through the column.
• It operates with low consumption single phase power.
• The motor is Inverter for environmentally friendly operation.
• It is electrostatically painted in the colour of the building.
• No space is required for storing the mechanical equipment as it is located inside the support guide. The control panel is integrated in the lifting column.
• Elegant design that stands out.
• Perfect price-quality balance.
