Why choose the S11 Plus by Vimec?

The S11 Plus is not just a machine, but a bridge to your independence. Every step ceases to be an obstacle, as the lift integrates discreetly into your home, accompanying you in the most valuable moments without interrupting them.

Adapts to you and your spaces

• Ideal for Coastal Areas: An optional version in AISI 316 stainless steel is available, which thanks to molybdenum (3%) offers excellent resistance to corrosion from salinity and humidity.
• Space flexibility: Whether you have a narrow entrance or specific room requirements, the S11 Plus always finds its place without taking up unnecessary space.
• Simple user experience: Extremely easy to use for everyone, from elderly people to small children, thanks to intuitive controls and smooth, jerk-free movement.
• Custom design: Elegant lines and the option to choose any RAL color or finish in AISI 316 stainless steel for coastal areas.

Detailed technical specifications

1. Load capacity: Designed for weights up to 400 kg, allowing safe transport of the user and a companion.
2. Inverter technology: Ensures maximum silence and precision in movement, avoiding sudden starts.
3. Screw & Nut system: Electromechanical screw-nut system that provides robustness and reliability.
4. 13 Configurations: Option to choose access (opposite, 90° or same side) to fit any architecture.
5. Certified safety: Full compliance with EN 81-41 standard and Machinery Directive 42/2006.
6. Anti-crushing protection: Double floor and protective bellows with sensors that stop movement if an obstacle is detected.
7. IP65 protection: Controls and push-button panel have a high level of protection against moisture and dust.
8. Emergency operation: Built-in 9 Ah batteries that allow automatic descent and rescue even during a power outage.

Technical Characteristics Vimec S11 Plus

• Use: Suitable for people with limited mobility and wheelchair users.

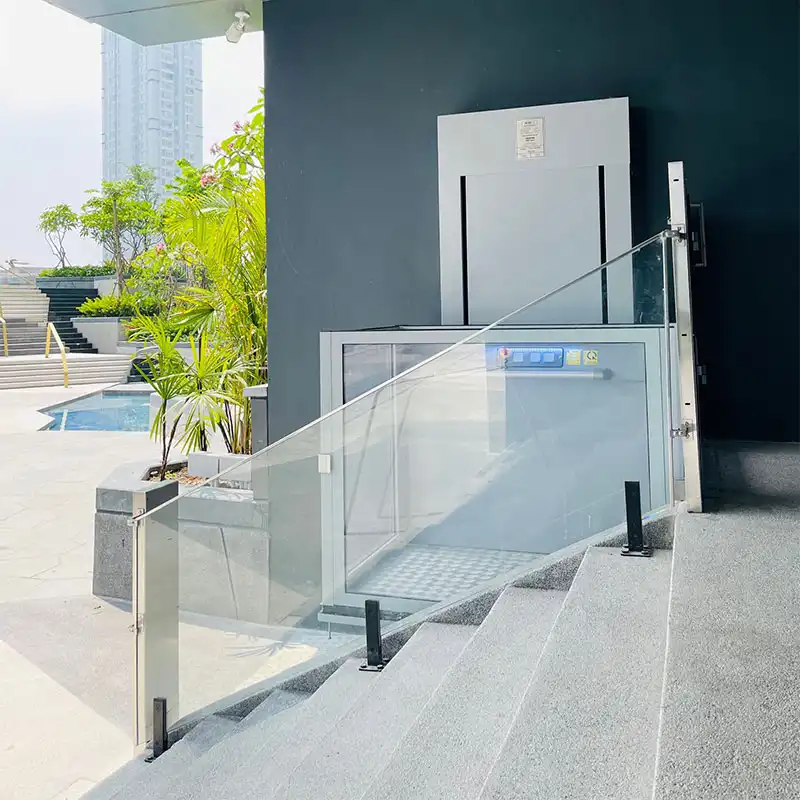

• Installation type: Indoor or outdoor use.
• Shaft type: Can be installed in an open environment (open shaft) or in a masonry shaft.
• Maximum load: 400 kg.
• Number of stops: 2 stops.
• Maximum travel: Up to 2,990 mm.

Platform Dimensions (Usable)

• Standard: 1,250 x 900 mm.
• Optional: 1,400 x 900 mm or 1,400 x 1,100 mm.
• Required pit depth: From 0 mm to 235 mm (depending on version and use of bellows).

Safety & Certifications

• Compliance: Fully compliant with the European Machinery Directive 42/2006 and EN 81-41 standard.
• Protection systems: * Double floor with safety sensors (safety edges) to prevent crushing.
• Protective bellows (optional) for full coverage of the mechanisms under the platform.
• Emergency stop button on the platform.
• Safety photocells along the travel path.
• Protection rating: IP65 for controls and push-button panel.

Special Versions

• Marine Edition: Option to manufacture in AISI 316 stainless steel (contains 3% molybdenum), offering top resistance to corrosion in high humidity and salinity environments.
• Finishes: Available in Standard RAL 7040, as well as RAL 1013, 7016, 9023 or custom colors upon request.
