F100 – F100M

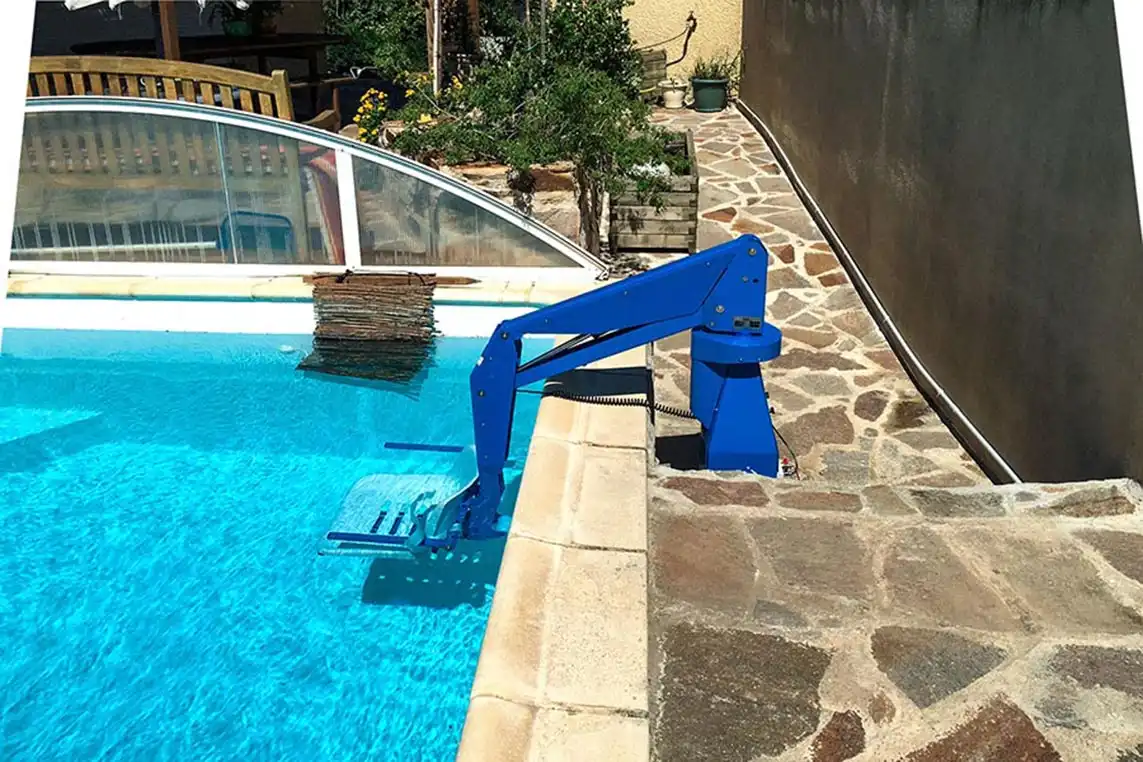

The F100 and F100M fixed pool lifts are configured as a solid and rotating structure, easily customizable according to the needs of the end customer.
In addition to rehabilitation centers, the models F100M and F100 are suitable for above-ground pools made of masonry, PVC and wood. The anchorage must always be on reinforced concrete by means of eight dowels or concrete plinth with dimensions 60 x 60 x 60 cm.
Manufacturer:
Description
CERTIFICATIONS & PATENT
Regulation EU 2017/745 Medical Devices – class 1 – (F100) DM 321258/R – (F100 M) DM943674/R
Directive 2006/42/EC – Machinery Directive
Directive 2004/108/EC – EMC Electromagnetic Compatibility
TECHNICAL DETAILS
Maximum capacity: 140 kg
Maximum travel: 1210 mm
Time of lowering – lifting with weight into water: 20 sec
Weight of the lift: 100 kg
Battery: 24 V
OPTIONAL
4-point safety belt
5-point safety belt
Rotation motor for F100M version
Headrest
Different length base (without/200mm/400mm/600mm)
TECHNICAL FEATURES

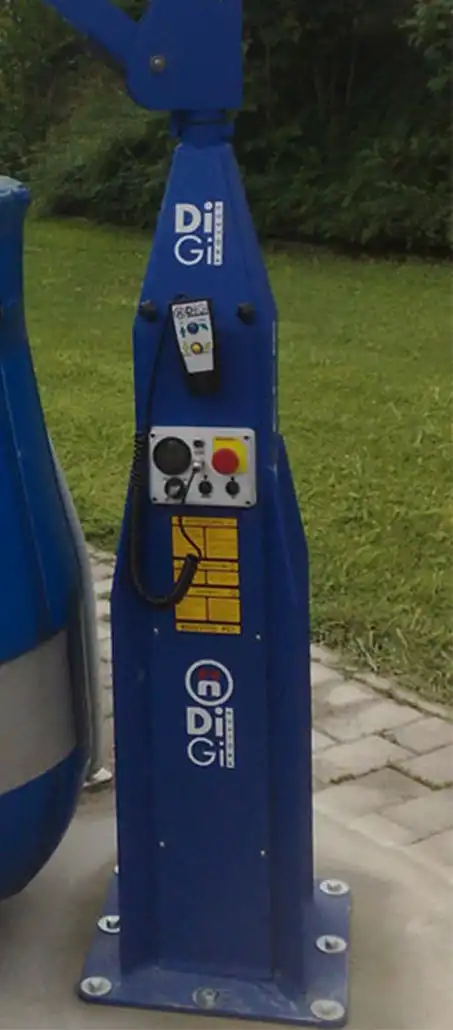

Starter key & emergency stop button
Electrohydraulic box
Emergency manual pump for use in case of power failure
Spiral cable handset
350° rotation
Retractable leg support
Adjustable armrests
External battery charger
Average autonomy: 50 working cycles
2-point safety belt
Galvanizing and 180°C powder coating treatment
Stainless steel frame for in-water parts
Access to water projects from Bibikas Special
Additional information
| Μέγιστη διαδρομή | |
|---|---|
| Μέγιστη χωρητικότητα | |
| Βάθος του καθίσματος μέσα στο νερό | |
| Χρόνος καθέλκυσης – ανύψωσης με το βάρος στο νερό | |
| Βάρος του ανελκυστήρα | |
| Battery | 24 V |
| Λειτουργία |
