Description
CERTIFICATIONS & PATENT
Patent MN2013UI
Regulation EU 2017/745 Medical Devices – class 1 – DM 1087746/R
Directive 2006/42/EC – Machinery Directive
Directive 2004/108/EC – EMC Electromagnetic Compatibility
European registered design No.0021782020001
TECHNICAL DETAILS
Maximum capacity: 150 kg
Maximum travel: 1385 mm
Depth of seat inside the water: 775 mm
Time of lowering – lifting with weight into water: 20 sec
Weight of the lift: 260 kg
Battery: 24 V
OPTIONAL
Handset for lifting and lowering
4-point safety belt
5-point safety belt
Cover

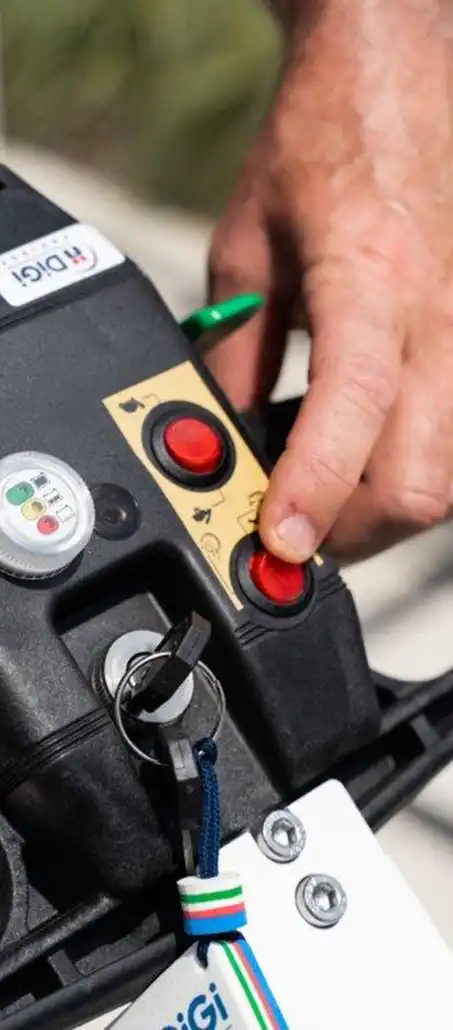

TECHNICAL FEATURES
2 speeds motorised movements
Control bar far forward motion and seat
Starter key
Battery charge level indicator
Emergency stop button
Anti-crushing system for backward movement
Automatic braking system integrated in the motorised wheel
Electrohydraulic box
Emergency manual pump for use in case of power failure
Front rubber stoppers far forward safety lock
lnfrared front hole sensor for forward safety stop
Retractable leg support
Adjustable armrests
Internal battery charger with LED indicator
Average autonomy: 50 working cycles
2-point safety belt
Stainless steel frame for in-water parts
Galvanization and powder coating
Access to water projects from Bibikas Special
Additional information
| Μέγιστη χωρητικότητα | |
|---|---|
| Μέγιστη διαδρομή | |
| Βάθος του καθίσματος μέσα στο νερό | |
| Χρόνος καθέλκυσης – ανύψωσης με το βάρος στο νερό | |
| Βάρος του ανελκυστήρα | |
| Battery | 24 V |
