F130

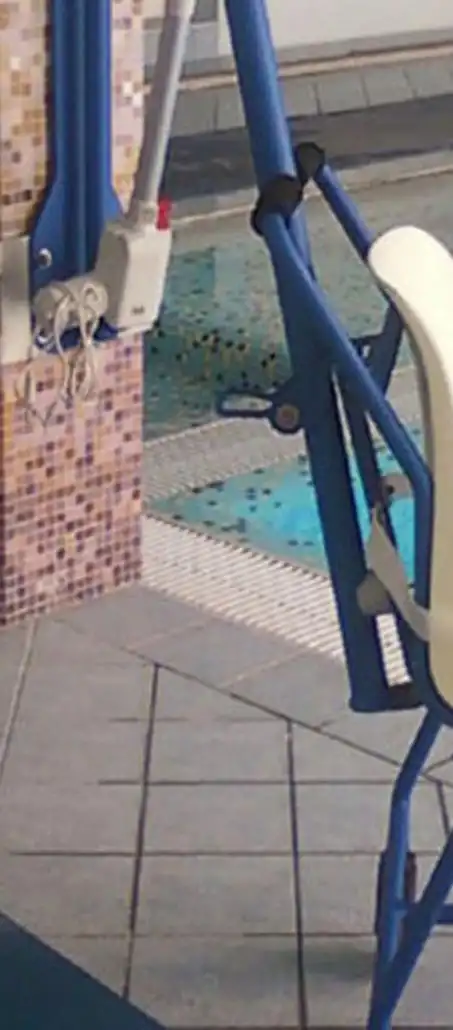

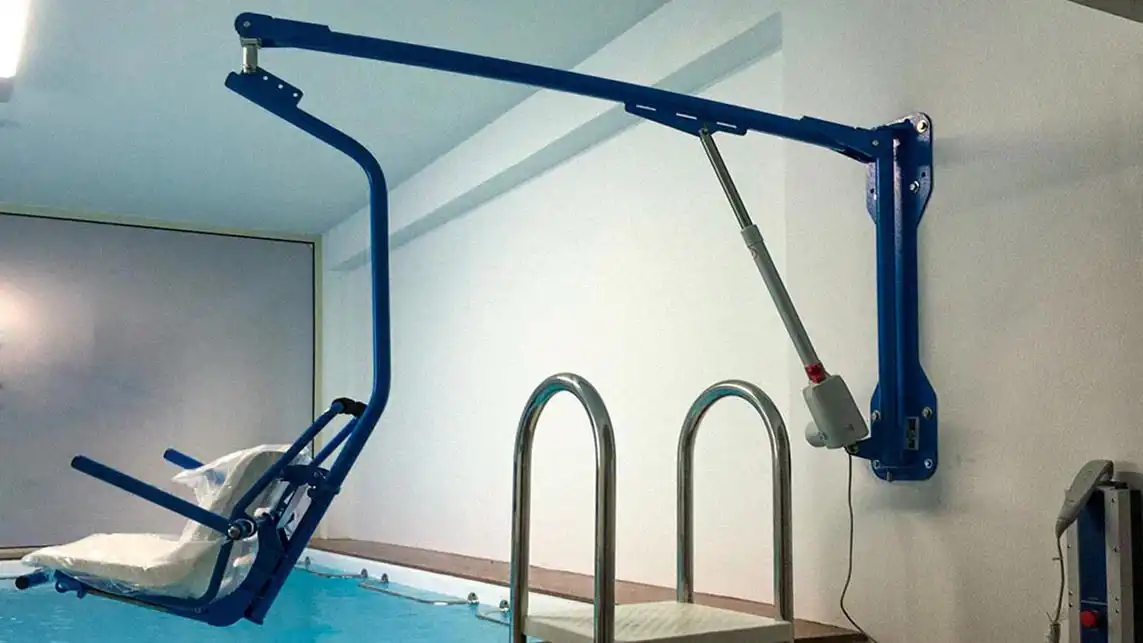

The F130 fixed lift allows, through its flagged structure, to be fixed to perimeter or bearing walls, thus eliminating the need for a basement on the ground. The anchorage must always be carried out on a bearing wall in stone or with a thickness of more than 25 cm by means of dowels or safety counter-plate. The lift can be equipped with a seat + wheels or a sling.
The model F130 is particularly suitable for raised therapeutic pools in masonry, whirlpools, mud therapy that are in confined spaces.
Manufacturer:
Description
CERTIFICATIONS & PATENT
Regulation EU 2017/745 Medical Devices – class 1 – DM 321258/R
Directive 2006/42/EC Machinery Directive
Directive 2004/108/EC – EMC Electromagnetic Compatibility
TECHNICAL DETAILS
Maximum capacity: 140 kg
Maximum travel: 1365 mm
Time of lowering lifting with weight into water: 20 sec
Weight of the lift: 50 kg
Battery: 24 V
OPTIONAL
Different arms lengths available
Cover for electric actuator
TECHNICAL FEATURES
IPX06 spiral cable push-button panel for up-down controls from the water
Retractable leg support
Adjustable armrests
160° rotation
Removable battery with charger
Emergency stop button
Average autonomy: 50 working cycles
2-point safety belt
Galvanizing and powder coating treatment
Stainless steel frame for in-water parts
Access to water projects from Bibikas Special
Additional information
| Μέγιστη χωρητικότητα | |
|---|---|
| Μέγιστη διαδρομή | |
| Χρόνος καθέλκυσης – ανύψωσης με το βάρος στο νερό | |
| Βάρος του ανελκυστήρα | |
| Battery | 24 V |
